Flexible Asset Detection Lockers

If you want to be confident that your operational processes to share assets amongst multiple staff are  optimised for success at the start, during and at the end of every shift, whilst mitigating the associated “whole of life” costs, look no further than Traka’s Flexible Asset Detection Locker solution, backed by the security and support of a world-leading expert, this solution:

  • Reduces locker installation and on-going maintenance efforts and downtime
  • Simplifies the asset tagging process
  • Enables new / replacement assets to be added to the estate more quickly
  • Eliminates workflows required to ensure assets are correctly positioned in the compartment
  • Improves the speed of return and accuracy of vital activity usage reports

Traka’s Intelligent Locker systems have always used RFID solutions to read assets’ location in a compartment, however our new proprietary antenna design, removes the need for asset inserts and reader brackets. Additionally, as the antennas are wholly owned and developed by Traka, concerns around the costs of expensive, off-the-shelf replacements are eliminated as are any concerns around incumbent suppliers going out of business.

For operational, site and facilities managers this solution increases the speed of getting started and making replacements, reduces effort required to stay fully functional, improves daily operational workflows and the quality of reporting ensuring they are optimised for success at the start, during and at the end of every shift, whilst mitigating the associated “whole of life” costs.

For users, this solution increases the speed of return and reduces the operational impacts of not replacing the asset precisely in the compartment. Being able to maximise the use of assets by ensuring they are properly detected when present in the lockers can be vital to saving time in issuing assets, which can enable users to start their shift promptly and maximise efficiency.

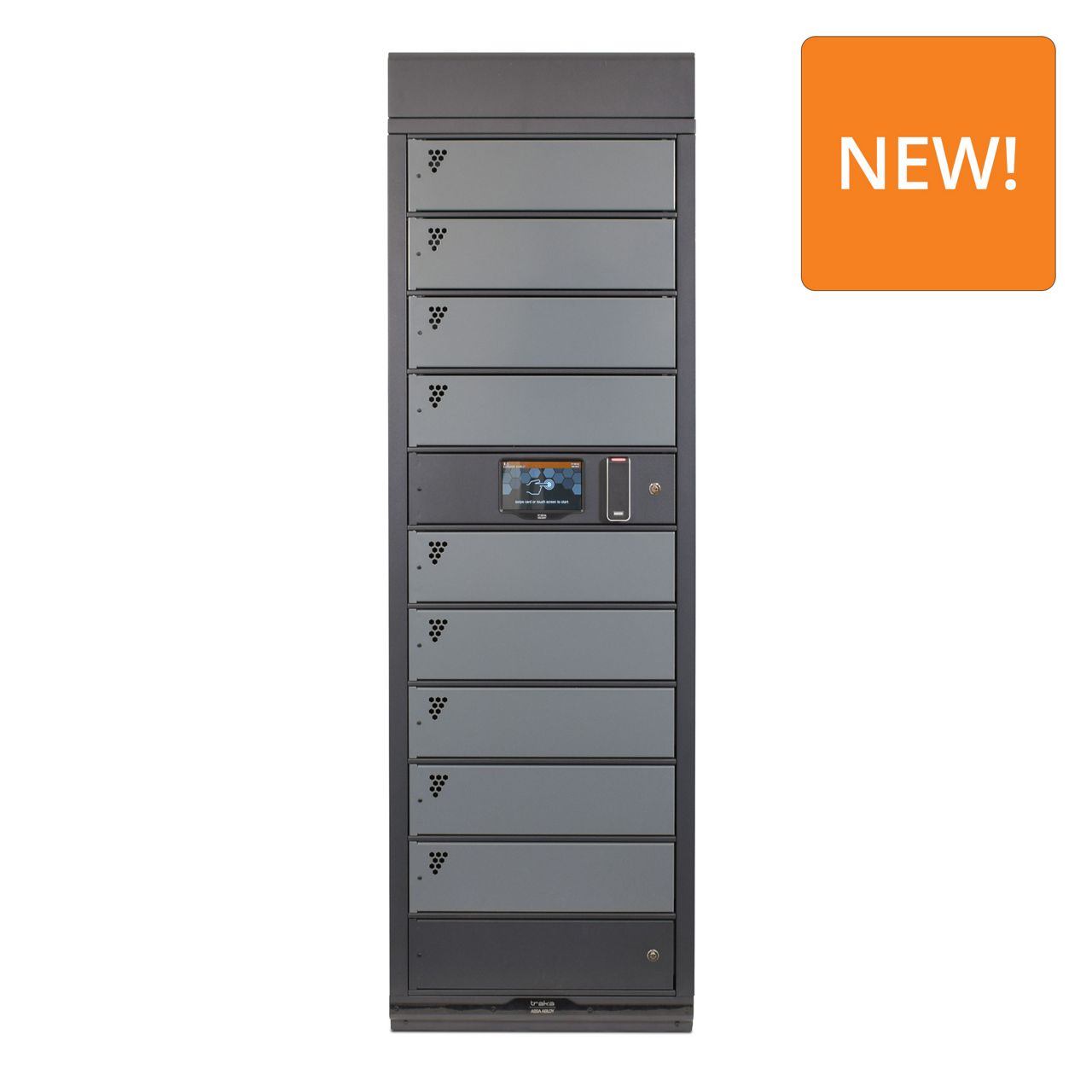

Flexible Asset Detection Locker 3 quarter right facingFlexible Asset Detection Locker 3 quarter right facing
  • Available as a 9-way Control Unit with integrated Traka Touch controller and 10-way Extension unit configurations for scalability
  • Equipment management and assurance by Traka’s proprietary Flexible Asset Detection technology powered by UHF RFID​
  • Available with a choice of UHF RFID & mains or USB charging, UHF RFID only, mains or USB charging only and storage only options ​
  • Fast access via PIN code, card reader and biometric reader​
  • Standard colours: RAL 7021 Black Grey frames and RAL 7012 Basalt Grey doors ​
  • Sloping or Flat top options
  • Lower Service Compartment for accessories and with manual door-release override​
  • Built-in castors and feet for easy maneuverability

  • Material data:

    • Cabinet: Zintec Steel
    • Door material: Perforated metal
    • Colour options: Cabinet frame: RAL 7021 (Black Grey), fine texture, Doors: RAL 7012 (Basalt Grey)
    • Other options available upon request

    Stack data:

    • Height (includes sloping top): 9-way Control Unit and 10-way Extension Unit: 1905 mm / 75 in
    • Width: 9-way Control Unit and 10-way Extension Unit: 600 mm / 23.62 in
    • Depth: 9-way Control Unit and 10-way Extension Unit: 575 mm / 22.64 in
    • Weight: 9-way Control Unit: 155 kg / 342 lbs, 10-way Extension Unit: 155 kg / 342 lbs
    • Mounting: Not suitable for freestanding applications. Must be securely fixed to a load bearing wall.

    Compartment data: ** allows for 10mm clearance

    • Maximum internal usable height**: 9-way Control unit and 10-way Extension Unit: 130mm / 5.1 in
    • Maximum internal usable internal width**: 9-way Control Unit and 10-way Extension Unit: 460 mm / 18.1 in
    • Maximum internal usable depth**: 9-way Control Unit and 10-way Extension Unit: 390 mm / 15.4 in
    • Max compartments / locker stack:
      • 9-way Control Unit: 9
      • 10-way Extension: 10

    Electrical data:

    • Power supply: Input: 100-240V AC, Output: 15V DC
    • Battery backup: DC12V 7Ah
    • Power Supply Rating (no charging): 35W (max) with or without RFID
    • Power Supply Rating (with charging): As above plus electrical load required after consulting with Traka for more details
    • Device charging connection options:
      • Mains socket: User accessible / concealed
      • USB A and USB C with Fast Charging and Power Delivery up to 45W: User accessible / concealed

    Environmental data:

    • Operating temp: Ambient, for indoor use only (-5°C to +40°C at 95% non-condensing relative humidity)

    Network & connectivity data:

    • Communications: TCP/IP with TLS 1.2 and AES-256 encryption
    • Reader interface options: Clock/data, Wiegand, Serial (RS232/ TTL), PIN only, OSDP Readers (RS485) with or without Encryption
    • Alarm interface: x3 2A/30V DC max. rated relay contacts for connecting to alarms, access control systems, CCTV, etc.

    Conformity & Standards data:

    • UKCA(UK); CE(EU)
    • Quality: ISO9001
    • Environmental: ISO14001
    • Information Security: ISO27001
